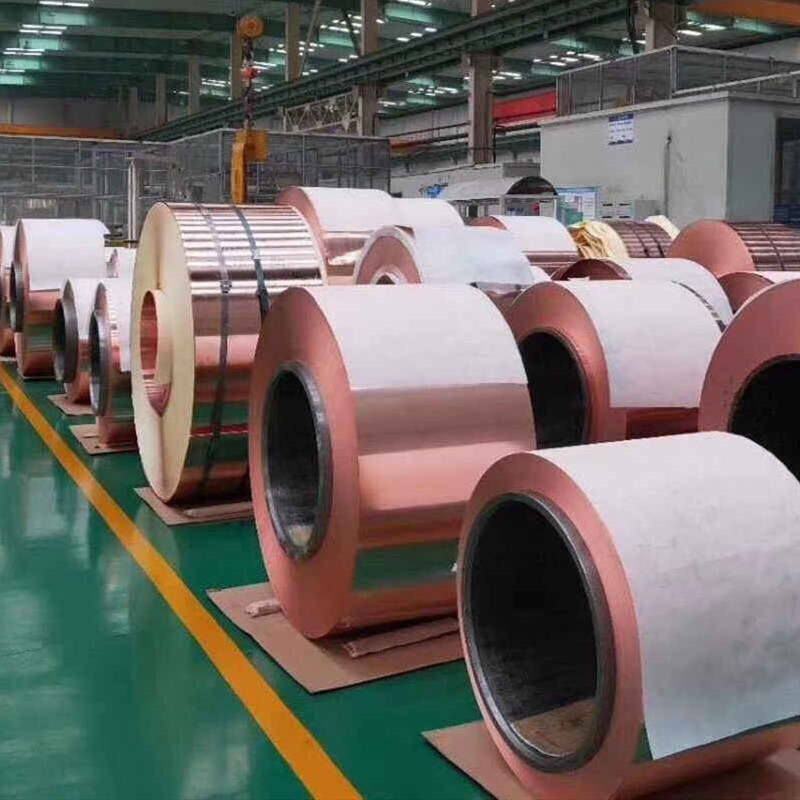

Gilding Metal Clad Steel Strip (GMCS Strip)

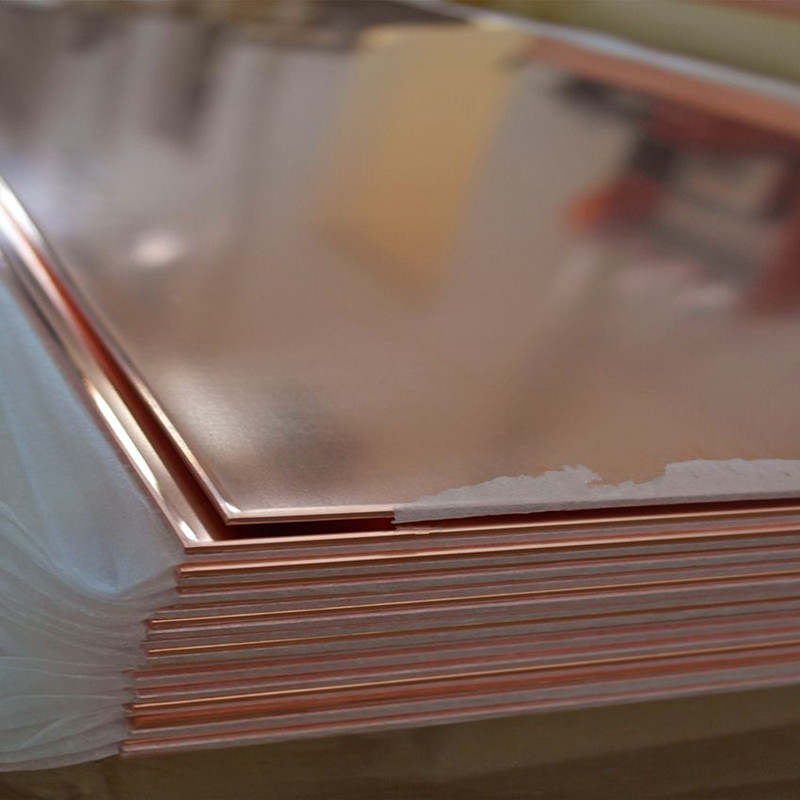

Single/double-side copper-steel composite plates & strips (steel as base)
Character:
Copper and copper alloy clad steel has high strength, high thermal conductivity, high conductivity, good plasticity and wear-resisting property , beautiful appearance and good reprocess –ability (Glazing or chrome plating).This kind of material can clad one side or both sides, and used for the fields in which all plating items can not satisfy the requirement, pure non-ferrous metal is expensive, or without good processing performance．
Specifications Available
|
Standard Size |
Copper-Steel |
Copper-Steel-Copper |
|
Strip Width |
< 800 mm |
< 800 mm |
|
Strip Thickness |
0,05- 3,0 mm |
0,05 - 3,0 mm |
|
Thickness of Gilding Metal |
3 - 15 % |
3 - 15 % |
|
Base Material |
Carbon steel |
Carbon steel |
|
Gilding Material |
Cu |
Cu |
|
Packing Type |
Coil |
Coil |
|
Surface Condition |
Bright |
Bright |
The thickness of the gilding copper is not limited within 3%~15%, it’s up to the customer’s requirements. One side of the copper can be different from the other side.
Product performance
|
Material
|
Composition（%） |
Density
(g/cm³) |
Conductivity
(m/Ωmm2) |
Tensile Strength（Mpa） |
Elongation（%） |
Combined Strength |
|
|
Annealing |
Half hard state |
|
|
Annealing |
Half hard state |
|
|
Copper
clad steel |
5/90/5 |
7.9 |
12.7 |
≥265 |
≥365 |
≥37 |
≥15 |
Re-bend until break without separation |
|
|
Copper
clad steel |
10/80/10 |
8.0 |
17.8 |
≥250 |
≥350 |
≥40 |
≥20 |
|
